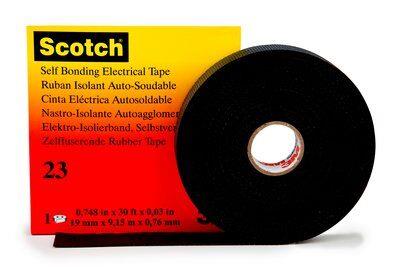

23 Scotch® Rubber Splicing Tape

Brand: 3M
Favorite

High and low voltage insulation, self-fusing rubber tape. Primary electrical insulation for splicing all solid dielectric cables through 69 kV.

Scotch® Rubber Splicing Tape 23 has greater physical and electrical properties that are unaffected by the degree of stretch. This tape is highly resistant to split, crack and flag when exposed to indoor or outdoor environments.

It is designed to splice and terminate cables whose emergency overload temperatures can reach 266° F (130° C). This self-fusing ethylene propylene rubber, high-insulating voltage tape has a snakeskin liner that is easily removed as the tape is applied. It is compatible with synthetic cables insulations and paper insulations cables. ASTM Approved & RoHS 2002/65/EC Compliant.
Features
  • Rubber resin provides excellent adherence to irregular surfaces
  • Primary electrical insulation for splicing cable from 600V to 69 kV on all solid dielectric cables
  • Suitable for jacketing high-voltage splices and terminations
  • Available in narrow and wide widths (0.75 to 2 in)
  • Temperature rated for continuous adhesion to 194° F (90° C)
  • Withstands temperatures up to 194° F (90° C)
  • Special polyester liner
  • ASTM Approved & RoHS 2002/65/EC Compliant

Specifications

Brand

Adhesion to Steel

  • N/A

Adhesive Material

  • Rubber Resin

Agency Approvals

  • ASTM D-4388 type 1, 2 & 3 | HH-I-3825B
  • RoHS 2011/65/EU Compliant Without Exemption

Application

  • Electrical Maintenance
  • Insulation

Backing Material

  • Ethylene Propylene Rubber
  • Polyester lining

Backing Thickness (Metric)

  • 0.76 mm

Brand

  • Scotch®

Dielectric Strength

  • 800 V/mil

Elongation

  • 10%
  • 1000%

Elongation at Break

  • 10

Emergency Overload Temperature

  • 130° C (266° F)

Family

  • Scotch® Rubber Splicing Tape 23

Insulated

  • Yes

Insulation Resistance

  • > 10^6 megohms

Liner / Linerless

  • Liner

Material

  • EPR with Liner

Operating Temperature

  • 0° C to 90° C (32° to 194° F)

Product Color

  • Black

Product Form

  • Roll

Product Type

  • Rubber and Splicing Tapes

Rolls Per Carton

  • 1

Rolls Per Case

  • 32
  • 40
  • 16
  • 20

Self-extinguishing

  • No

Self-sticking

  • Yes

Shelf Life

  • 5 Years

Shelf Life in Months (From Date of Manufacture)

  • 60

Solution For

  • Wireless Network: Infrastructure Accessories
  • ireless Network: Weatherproofing

Specifications

  • ASTM D-4388 Type 1, 2 & 3

Suitable for High Voltage

  • Yes

Tape Color

  • Black

Tape Grade

  • Premium
  • Professional

Tape Length (Metric)

  • 9.1 m

Tape Type

  • Professional Grade Rubber Tape

Tape Width (Metric)

  • 0.75 in (19.1 mm)
  • 2 in (50.8 mm)
  • i in (25.4 mm)

Tensile Strength (Metric)

  • 55 kPa

Tensile Strength Lb/in (N/100 mm)

  • 8 (140)

Total Tape Thickness Without Liner

  • 30 mil (0.76 mm)

Total Thickness

  • 0.76 mm

Units Per Case

  • 16
  • 20
  • 32
  • 40

UV Restistant

  • No

Voltage

  • 69 kV

Voltage Application

    Voltage Rating

    • 69 kV

    Vulcanizing

    • No, Yes
