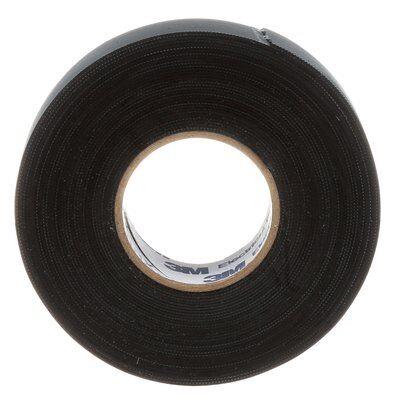

2155 Temflex™ Rubber Splicing Tape

Brand: 3M
Favorite

3M™ Temflex™ Tape 2155 is a 30-mil, general purpose, highly conformable, electrically insulating, low-voltage rubber splicing tape. The self-fusing tape is designed to offer guaranteed performance when used with solid dielectric cable insulations and has a liner, which will not stick to the tape upon unwind. It withstands a wide temperature range of 176° F (80° C).

3M™ Temflex™ Splicing Tape 2155 with self-fusing rubber backing, has rubber-resin adhesive that offers optimized adherence. This tape is designed for low-voltage electrical insulating and moisture-sealing applications. It maintains the flexibility over a wide range of temperatures.

Electrical insulating tape finds application in bolted connections, service drops, lightning connections, ground rod connections and motor leads. UL Listed and RoHS 2011/65/EU Compliant.
Features
  • Rubber resin provides excellent adherence
  • Self-fusing rubber backing offers durability and resists tears as well as abrasion
  • Comes in black color
  • Withstands temperatures up to 176° F (80° C)
  • UL Listed and RoHS 2011/65/EU Compliant

Specifications

Brand

Adhesion to Steel

  • N/A

Adhesive Material

  • Rubber Resin

Agency Approvals

  • UL Listed
  • RoHS EU Comments

Application

  • Electrical Maintenance
  • Insulation

Backing Material

  • Rubber

Backing Thickness

  • 0.76 mm

Brand

  • Temflex™

Dielectric Strength

  • 600 V/mil

Elongation

  • 700%

Elongation at Break

  • 7

Gel Time

  • 28 Minutes at 140° F (60° C)

Insulated

  • Yes

Liner / Linerless

  • Liner

Material

  • Silicone Rubber

Maximum Operating Temperature

  • 80° C (176° F)

Product Color

  • Black

Product Type

  • Rubber and Splicing Tape

Self-extinguishing

  • No

Self-sticking

  • Yes

Shelf Life

  • 3 Years

Suitable for High Voltage

  • No

Tape Color

  • Black

Tape Grade

  • General Use

Tape Length (Metric)

  • 6.7 m

Tape Type

  • General Use Rubber Tape

Tape Width

  • 0.75 in (19.1 mm)
  • 1.5 in (38 mm)

Tensile Strength

  • 2,068.4 kPa (300 lbf/in²)

Tensile Strength

  • 9 lb/in (158 N/100 mm)

Total Tape Thickness Without Liner

  • 30 mil (0.76 mm)

Total Thickness

  • 0.76 mm

Units Per Case

  • 100

UV Resistant

  • No

Voltage Rating

  • 600 V

Vulcanizing

  • No, Yes
