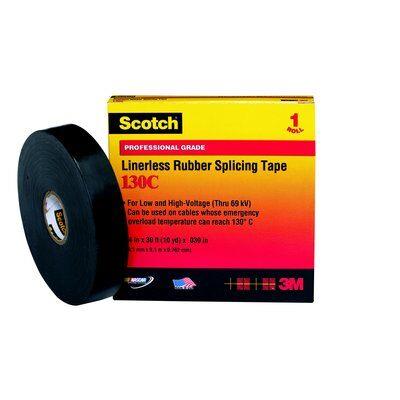

130C Scotch® Linerless Rubber Splicing Tape

Brand: 3M
Favorite

High voltage insulating; thermally dissipating; self-bonding. Primary electrical insulation for splicing all solid dielectric cables through 69 kV.  It withstands temperatures up to 194° F (90° C) with emergency overload up to 266° F (130° C). The tape has excellent electrical and mechanical properties to provide moisture-seal protection.

Scotch® Tape 130C is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber-resin adhesive and a self-fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV.

This tape is designed for low- and high-voltage, bus bar insulation, end-sealing of cables and jacket repair applications.  It has outstanding mechanical and electrical properties that offer moisture seal and void-free buildups. ASTM Approved and RoHS 2011/65/EU Compliant.
Features
  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • Suitable for splicing and terminating cables and wires
  • Provides an excellent thermal dissipation of splice heat
  • Tensile strength rating of 17 lbs. per inch meets professional electrical standards
  • Comes in black color
  • Withstands temperatures up to 194° F (90° C)
  • ASTM Approved and RoHS 2011/65/EU Compliant

Specifications

Brand

Adhesion to Steel

  • N/A

Adhesive Material

  • Rubber Resin

Certifications & Approvals

  • ASTM D-4325, ASTM D-4388 Type 1, 2 & 3, HH-I-553C
  • RoHS 2011 / 65 / EU Compliant

Application

  • Insulation

Application / Industry

  • Wind Power
  • Utility
  • Solar
  • Mining
  • Maintenance and Repair Operations
  • Industrial Construction
  • Communications
  • Commercial Construction
  • Appliance and Fixture

Backing Material

  • Ethylene Rubber
  • Ethylene Propylene Rubber

Backing Thickness (Metric)

  • 0.76 mm

Brand

  • Scotch®, Scotch™

Compatible with

  • All Dome Closures

Dielectric Strength

  • 750 V/mil

Elongation

  • 850%

Elongation at Break

  • 8.5

Emergency Overload Temperature

  • 130° C (266° F)

Family

  • Scotch® Linerless Rubber Splicing Tape 130C

Insulated

  • Yes

Insulation Resistance

  • >10^15 Ohm
  • >10^15 megohms

Liner / Linerless

  • Linerless

Material

  • Linerless EPR

Operating Temperature Range

  • 0° C to 90° C (32° to 194° F)

Product Color

  • Black

Product Type

  • Rubber Tapes
  • Rubber and Splicing Tapes

Rolls Per Carton

  • 1

Rolls Per Case

  • 24
  • 12

Self-extinguishing

  • No

Self-sticking

  • Yes

Shelf Life

  • 5 Years

Shelf Life in Months (From Date of Manufacture)

  • 60

Solution For

  • Network: Outdoor, Wireless Network: Infrastructure Accessories
  • Access Network: FTTH/FTTB/CATV, Long-haul/Metro Loop

Specifications

  • ASTM D-4388 Type 1, 2 & 3, HH-I- 553C

Suitable for High Voltage

  • Yes

Tape Color

  • Black

Tape Grade

  • Premium

Tape Length (Metric)

  • 4.6 m
  • 9.1 m
  • 3.1 m

Tape Type

  • Professional Grade Rubber Tape

Tape Width

  • 2 in (50.8 mm)
  • 1.5 in (38 mm)
  • 1 in (25.4 mm)
  • 0.75 in (19.1 mm)

Tensile Strength

  • 250 psi (1723 kPa)

Tensile Strength Lb/in (N/100 mm)

  • 7.5 (131)

Total Tape Thickness Without Liner

  • 0.76 mm
  • 30 mil

Total Thickness

  • 0.76 mm

Units Per Case

  • 24
  • 12

UV Resistant

  • Yes

Voltage Application

  • High Voltage

Voltage Rating

  • 69 kV

Vulcanizing

  • Yes
